FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

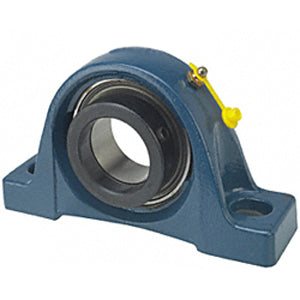

| title | SY 2.7/16 WF |
| price | $ 239.47 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | SKF |
| Inch - Metric | Inch |
| Brand | SKF |
| Weight / LBS | 11.8 |
| Other Features | Single Row | Standard Duty | Wide Inner Race | Y Bearing | Has Flinger |
| Relubricatable | Yes |
| Global Part Number GPN | 501279 |
| Mounting Method | Eccentric Collar |
| Length Thru Bore | 3.063 Inch | 77.8 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 7.3 Inch | 184 Millimeter |
| Bolt Spacing Minimum | 7.063 Inch | 179.4Millimeter |
| Base to Center Height | 2.75 Inch | 69.85 Millimeter |
| Bolt Spacing Maximum | 7.938 Inch | 201.625Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | YEL 212-207-2F |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | M Seal |
| Housing Material | Cast Iron |
| Mounting Bolts | 5/8 Inch |
| Housing Configuration | 1 Piece Solid |
