Specifications

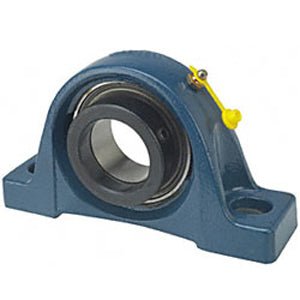

| title | SY 40 FM |
| price | $ 189.98 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | SKF |
| Weight / kgm | 1.85 |
| Inch - Metric | Metric |
| Brand | SKF |
| Weight / LBS | 4.08 |
| Other Features | Single Row | Standard Duty | Narrow Inner Race | Y Bearing |
| Relubricatable | Yes |
| Global Part Number GPN | 501229 |
| Mounting Method | Eccentric Collar |
| Length Thru Bore | 1.72 Inch | 43.7 Millimeter |
| Actual Bolt Center to Center | 5.3 Inch | 134.3Millimeter |
| Nominal Bolt Center to Center | 5.4 Inch | 136 Millimeter |
| Bolt Spacing Minimum | 0 Inch | 0Millimeter |
| Base to Center Height | 1.937 Inch | 49.2 Millimeter |
| Bolt Spacing Maximum | 0 Inch | 0Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | YET 208 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | M Seal |
| Housing Material | Cast Iron |
| Mounting Bolts | 12 Millimeter |
| Housing Configuration | 1 Piece Solid |
