FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

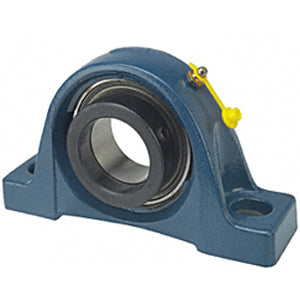

| title | SY 50 WF |
| price | $ 213.11 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | SKF |
| Inch - Metric | Metric |
| Brand | SKF |
| Weight / LBS | 8.6 |
| Other Features | Single Row | Standard Duty | Wide Inner Race | Y Bearing | Has Flinger |
| Relubricatable | Yes |
| Global Part Number GPN | 501213 |
| Mounting Method | Eccentric Collar |
| Length Thru Bore | 2.469 Inch | 62.7 Millimeter |
| Actual Bolt Center to Center | 6.2 Inch | 157Millimeter |
| Nominal Bolt Center to Center | 6.3 Inch | 160 Millimeter |
| Bolt Spacing Minimum | 0 Inch | 0Millimeter |
| Base to Center Height | 2.252 Inch | 57.2 Millimeter |
| Bolt Spacing Maximum | 0 Inch | 0Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | YEL 210-2F |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | M Seal |
| Housing Material | Cast Iron |
| Mounting Bolts | 16 Millimeter |
| Housing Configuration | 1 Piece Solid |
