Specifications

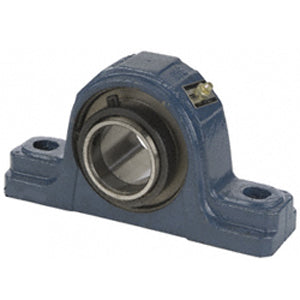

| title | SYE 1.7/16 |
| price | $ 225.74 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | SKF |
| Weight / kgm | 3.053 |
| Inch - Metric | Inch |
| Brand | SKF |
| Weight / LBS | 8 |
| Other Features | Double Row | Heavy Duty | Open End | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 501177 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 2.75 Inch | 69.85 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 5.3 Inch | 133.5 Millimeter |
| Bolt Spacing Minimum | 5.5 Inch | 139.7Millimeter |
| Base to Center Height | 1.875 Inch | 47.63 Millimeter |
| Bolt Spacing Maximum | 6 Inch | 152.4Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | 22208 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Expansion |
| Seals | Trigard |
| Housing Material | Cast Iron |
| Mounting Bolts | 1/2 Inch |
| Housing Configuration | 1 Piece Solid |
