FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

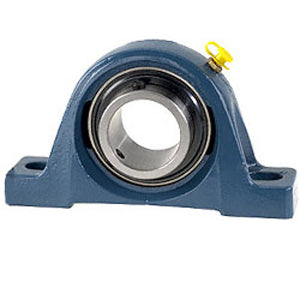

| title | SYH 1. FM |
| price | $ 46.41 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | SKF |
| Weight / kgm | 0.77 |
| Inch - Metric | Inch |
| Brand | SKF |
| Weight / LBS | 1.7 |
| Other Features | Single Row | Standard Duty | Narrow Inner Race | Low Base |
| Relubricatable | Yes |
| Global Part Number GPN | 501104 |
| Mounting Method | Eccentric Collar |
| Length Thru Bore | 1.219 Inch | 30.963 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 4.1 Inch | 105 Millimeter |
| Bolt Spacing Minimum | 3.688 Inch | 93.675Millimeter |
| Base to Center Height | 1.313 Inch | 33.35 Millimeter |
| Bolt Spacing Maximum | 4.344 Inch | 110.338Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | YET 205-100 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | M Seal |
| Housing Material | Cast Iron |
| Mounting Bolts | 3/8 Inch |
| Housing Configuration | 1 Piece Solid |
