FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

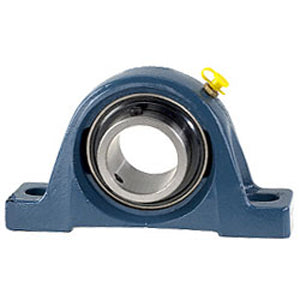

| title | SYH 2. WF |
| price | $ 184.61 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | SKF |
| Inch - Metric | Inch |
| Brand | SKF |
| Weight / LBS | 9.2 |
| Other Features | Single Row | Standard Duty | Wide Inner Race | Low Base | Has Flinger |
| Relubricatable | Yes |
| Global Part Number GPN | 501047 |
| Mounting Method | Eccentric Collar |
| Length Thru Bore | 2.813 Inch | 71.45 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 6.9 Inch | 175.3 Millimeter |
| Bolt Spacing Minimum | 6.375 Inch | 161.925Millimeter |
| Base to Center Height | 2.438 Inch | 61.925 Millimeter |
| Bolt Spacing Maximum | 7.125 Inch | 180.975Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | YEL 211-200-2F |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | M Seal |
| Housing Material | Cast Iron |
| Mounting Bolts | 5/8 Inch |
| Housing Configuration | 1 Piece Solid |
