FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

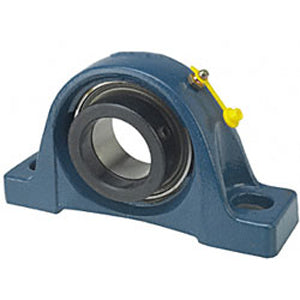

title | SYH 7/8 RM |
price | $ 45.81 / each |
Category | Pillow Block Bearings |
UNSPSC | 31171511 |
Harmonized Tariff Code | 8483.20.40.40 |
Manufacturer Name | SKF |
Inch - Metric | Inch |
Brand | SKF |
Weight / LBS | 1.8 |
Other Features | Single Row | Standard Duty | Narrow Inner Race | Low Base |
Relubricatable | Yes |
Global Part Number GPN | 501023 |
Mounting Method | Set Screw |
Length Thru Bore | 1.094 Inch | 27.8 Millimeter |
Actual Bolt Center to Center | 0 Inch | 0Millimeter |
Nominal Bolt Center to Center | 4.1 Inch | 105 Millimeter |
Bolt Spacing Minimum | 3.688 Inch | 93.675Millimeter |
Base to Center Height | 1.313 Inch | 33.35 Millimeter |
Bolt Spacing Maximum | 4.344 Inch | 110.338Millimeter |
Housing Style | 2 Bolt Pillow Block |
Insert Part Number | YAT 205-014 |
Number of Mounting Holes | 2 |
Expansion / Non-expansion | Non-expansion |
Seals | M Seal |
Housing Material | Cast Iron |
Mounting Bolts | 3/8 Inch |
Housing Configuration | 1 Piece Solid |
