Specifications

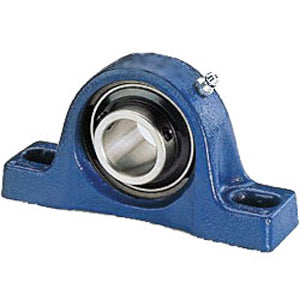

| title | SYJ 25 TF |
| price | $ 55.23 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | SKF |
| Weight / kgm | 0.73 |
| Inch - Metric | Metric |
| Brand | SKF |
| Weight / LBS | 1.61 |
| Other Features | Single Row | Y Bearing | With Grub Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 501020 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.343 Inch | 34.1 Millimeter |
| Actual Bolt Center to Center | 4 Inch | 102Millimeter |
| Nominal Bolt Center to Center | 4.1 Inch | 105 Millimeter |
| Bolt Spacing Minimum | 0 Inch | 0Millimeter |
| Base to Center Height | 1.437 Inch | 36.5 Millimeter |
| Bolt Spacing Maximum | 0 Inch | 0Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | YAR 205-2F |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | M Seal |
| Housing Material | Cast Iron |
| Mounting Bolts | 12 Millimeter |
| Housing Configuration | 1 Piece Solid |
