Specifications

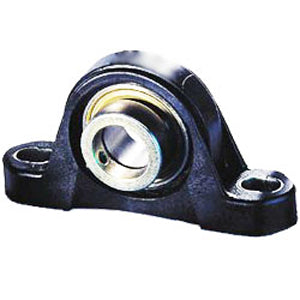

| title | SYK 20 TF |
| price | $ 103.54 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | SKF |
| Weight / kgm | 0.24 |
| Inch - Metric | Metric |
| Brand | SKF |
| Weight / LBS | 0.529 |
| Other Features | Single Row | Y Bearing | With Grub Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 500774 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.22 Inch | 31 Millimeter |
| Actual Bolt Center to Center | 3.8 Inch | 96Millimeter |
| Nominal Bolt Center to Center | 3.8 Inch | 97 Millimeter |
| Bolt Spacing Minimum | 0 Inch | 0Millimeter |
| Base to Center Height | 1.311 Inch | 33.3 Millimeter |
| Bolt Spacing Maximum | 0 Inch | 0Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | YAR 204-2F |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | M Seal |
| Housing Material | Composite |
| Mounting Bolts | 10 Millimeter |
| Housing Configuration | 1 Piece Solid |
