Specifications

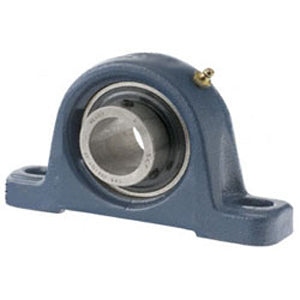

| title | SYM 2.7/16 TF |
| price | $ 227.39 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | SKF |
| Weight / kgm | 7.04 |
| Inch - Metric | Inch |
| Brand | SKF |
| Weight / LBS | 15.5 |
| Other Features | Single Row | Medium Duty | Wide Inner Race | Has Flinger |
| Relubricatable | Yes |
| Global Part Number GPN | 500987 |
| Mounting Method | Set Screw |
| Length Thru Bore | 2.75 Inch | 69.85 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 8 Inch | 203 Millimeter |
| Bolt Spacing Minimum | 7.5 Inch | 190.5Millimeter |
| Base to Center Height | 3 Inch | 76.2 Millimeter |
| Bolt Spacing Maximum | 8.5 Inch | 215.9Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | YAR 214-207-2F |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | M Seal |
| Housing Material | Cast Iron |
| Mounting Bolts | 3/4 Inch |
| Housing Configuration | 1 Piece Solid |
