FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

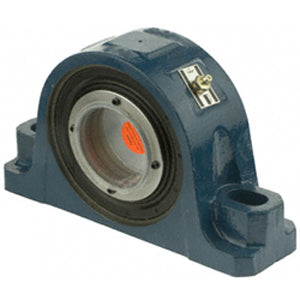

| title | SYR 2.3/16 NH-118 |
| price | $ 404.91 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | SKF |
| Weight / kgm | 5.45 |
| Inch - Metric | Inch |
| Brand | SKF |
| Weight / LBS | 12 |
| Other Features | Double Row | Heavy Duty | Locating Bearing | Open End | With Grub Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 500917 |
| Mounting Method | Stepped Sleeve |
| Length Thru Bore | 2.344 Inch | 59.538 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 6.8 Inch | 171.5 Millimeter |
| Bolt Spacing Minimum | 6.438 Inch | 163.525Millimeter |
| Base to Center Height | 2.5 Inch | 63.5 Millimeter |
| Bolt Spacing Maximum | 7.063 Inch | 179.4Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | 22211 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Labyrinth |
| Housing Material | Cast Iron |
| Mounting Bolts | 5/8 Inch |
| Housing Configuration | 1 Piece Solid |
