FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

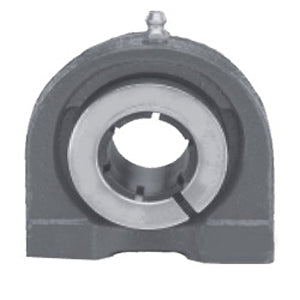

| title | TB-207TM |
| price | $ 256.86 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | MORSE INDUSTRIAL |
| Inch - Metric | Metric |
| Brand | MORSE INDUSTRIAL |
| Weight / LBS | 2.2 |
| Other Features | Single Row | Standard Duty | Skwezloc | Has Flinger |
| Relubricatable | Yes |
| Global Part Number GPN | 12883 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 1.688 Inch | 42.87 Millimeter |
| Actual Bolt Center to Center | 3.1 Inch | 80Millimeter |
| Nominal Bolt Center to Center | 3.2 Inch | 82.5 Millimeter |
| Bolt Spacing Minimum | 0 Inch | 0Millimeter |
| Base to Center Height | 1.874 Inch | 47.6 Millimeter |
| Bolt Spacing Maximum | 0 Inch | 0Millimeter |
| Housing Style | 2 Bolt Tap Base Pillow Block |
| Insert Part Number | 5207TM |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Expansion |
| Seals | Felt Labyrinth |
| Housing Material | Cast Iron |
| Mounting Bolts | 14 Millimeter |
| Housing Configuration | 1 Piece Solid |
