Specifications

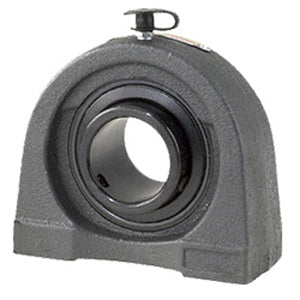

| title | TB-20RTC RM |
| price | $ 279.52 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | MORSE INDUSTRIAL |
| Inch - Metric | Inch |
| Brand | MORSE INDUSTRIAL |
| Weight / LBS | 3.7 |
| Other Features | Single Row | Standard Duty | Reduced Diameter Insert | Skwezloc | Has Flinger |
| Relubricatable | Yes |
| Global Part Number GPN | 515075 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 1.5 Inch | 38.1 Millimeter |
| Actual Bolt Center to Center | 3 Inch | 76Millimeter |
| Nominal Bolt Center to Center | 3 Inch | 76 Millimeter |
| Bolt Spacing Minimum | 0 Inch | 0Millimeter |
| Base to Center Height | 1.688 Inch | 42.875 Millimeter |
| Bolt Spacing Maximum | 0 Inch | 0Millimeter |
| Housing Style | 2 Bolt Tap Base Pillow Block |
| Insert Part Number | 1-14RTC-RM |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Expansion |
| Seals | Single Lip Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 7/16 Inch |
| Housing Configuration | 1 Piece Solid |
