FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

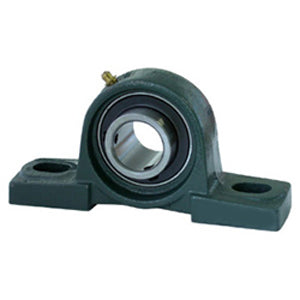

| title | UCP213-40NP |
| price | $ 203.66 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ASAHI BEARINGS |
| Weight / kgm | 6.592 |
| Inch - Metric | Inch |
| Brand | AMI BEARINGS |
| Weight / LBS | 12.34 |
| Other Features | Single Row | Spherical | Normal Duty | Has Slinger |
| Relubricatable | Yes |
| Global Part Number GPN | 524158 |
| Mounting Method | Set Screw |
| Length Thru Bore | 2.563 Inch | 65.09 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 8 Inch | 203 Millimeter |
| Bolt Spacing Minimum | 7.594 Inch | 192.888Millimeter |
| Base to Center Height | 3 Inch | 76.2 Millimeter |
| Bolt Spacing Maximum | 8.406 Inch | 213.512Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | UC213-40 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Contact Seal |
| Housing Material | Nickel Coated Cast Iron |
| Mounting Bolts | 3/4 Inch |
| Housing Configuration | 1 Piece Solid |
