Specifications

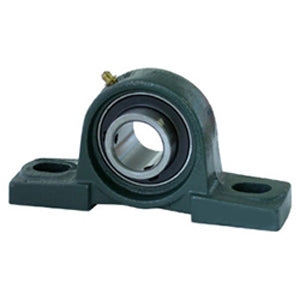

| title | UCP214-43NP |
| price | $ 259.28 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ASAHI BEARINGS |
| Weight / kgm | 7.31 |
| Inch - Metric | Inch |
| Brand | AMI BEARINGS |
| Weight / LBS | 16.09 |
| Other Features | Single Row | Spherical | Normal Duty | Has Slinger |
| Relubricatable | Yes |
| Global Part Number GPN | 524149 |
| Mounting Method | Set Screw |
| Length Thru Bore | 2.937 Inch | 74.6 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 8.3 Inch | 210 Millimeter |
| Bolt Spacing Minimum | 7.781 Inch | 197.637Millimeter |
| Base to Center Height | 3.125 Inch | 79.38 Millimeter |
| Bolt Spacing Maximum | 8.719 Inch | 221.463Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | UC214-43 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Contact Seal |
| Housing Material | Nickel Coated Cast Iron |
| Mounting Bolts | 3/4 Inch |
| Housing Configuration | 1 Piece Solid |
