FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

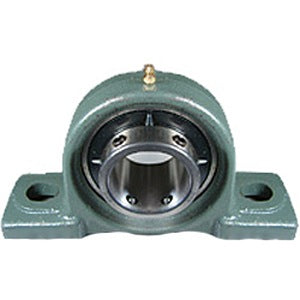

| title | UCP306D1 |
| price | $ 109.38 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | NTN |
| Weight / kgm | 1.8 |
| Inch - Metric | Metric |
| Brand | NTN |
| Weight / LBS | 3.968 |
| Other Features | Single Row | Heavy Duty | Wide Inner Race | Has Flinger |
| Relubricatable | Yes |
| Global Part Number GPN | 514559 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.693 Inch | 43 Millimeter |
| Actual Bolt Center to Center | 5.5 Inch | 140Millimeter |
| Nominal Bolt Center to Center | 5.5 Inch | 140 Millimeter |
| Bolt Spacing Minimum | 0 Inch | 0Millimeter |
| Base to Center Height | 1.969 Inch | 50 Millimeter |
| Bolt Spacing Maximum | 0 Inch | 0Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | UC306D1 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Land Riding |
| Housing Material | Cast Iron |
| Mounting Bolts | 14 Millimeter |
| Housing Configuration | 1 Piece Solid |
