Specifications
| title | UCPX11-203D1 |
| price | $ 139.13 / each |

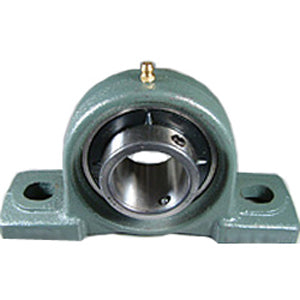

| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | NTN |
| Weight / kgm | 5.495 |
| Inch - Metric | Inch |
| Brand | NTN |
| Weight / LBS | 13 |
| Other Features | Single Row | Medium Duty | Wide Inner Race | Has Flinger |
| Relubricatable | Yes |
| Global Part Number GPN | 514663 |
| Mounting Method | Set Screw |
| Length Thru Bore | 2.563 Inch | 65.1 Millimeter |
| Actual Bolt Center to Center | 7.3 Inch | 185.4Millimeter |
| Nominal Bolt Center to Center | 7.3 Inch | 185.4 Millimeter |
| Base to Center Height | 2.75 Inch | 69.85 Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | UCX11-203D1 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Land Riding |
| Housing Material | Cast Iron |
| Mounting Bolts | 3/4 Inch |
| Housing Configuration | 1 Piece Solid |
