Specifications

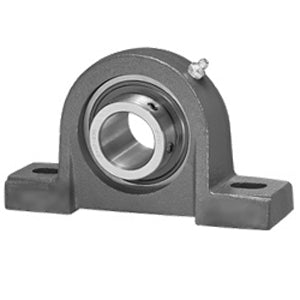

| title | UCPX12-39C4HR5 |
| price | $ 287.92 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ASAHI BEARINGS |
| Weight / kgm | 8.535 |
| Inch - Metric | Inch |
| Brand | AMI BEARINGS |
| Weight / LBS | 15.87 |
| Other Features | Single Row | Spherical | Medium Duty | High Temperature Range Up to 400 Degree F | Has Slinger |
| Relubricatable | Yes |
| Global Part Number GPN | 524511 |
| Mounting Method | Set Screw |
| Length Thru Bore | 2.563 Inch | 65.09 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 8 Inch | 203 Millimeter |
| Bolt Spacing Minimum | 7.125 Inch | 180.975Millimeter |
| Base to Center Height | 3 Inch | 76.2 Millimeter |
| Bolt Spacing Maximum | 8.875 Inch | 225.425Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | UCX12-39C4HR5 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Contact Seal |
| Housing Material | Cast Iron |
| Mounting Bolts | 3/4 Inch |
| Housing Configuration | 1 Piece Solid |
