FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

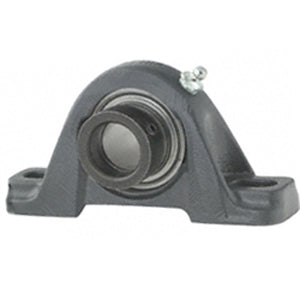

| title | UELP204-012D1 |
| price | $ 41.20 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | NTN |
| Weight / kgm | 0.74 |
| Inch - Metric | Inch |
| Brand | NTN |
| Weight / LBS | 1.5 |
| Other Features | Single Row | Light Duty | Wide Inner Race | Has Flinger | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 514424 |
| Mounting Method | Eccentric Collar |
| Length Thru Bore | 1.72 Inch | 43.688 Millimeter |
| Actual Bolt Center to Center | 3.8 Inch | 96.5Millimeter |
| Nominal Bolt Center to Center | 3.8 Inch | 96.5 Millimeter |
| Base to Center Height | 1.313 Inch | 33.35 Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | UEL204-012D1W3 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Land Riding |
| Housing Material | Cast Iron |
| Mounting Bolts | 3/8 Inch |
| Housing Configuration | 1 Piece Solid |
