Specifications
| title | UELP208-108D1 |
| price | $ 69.75 / each |

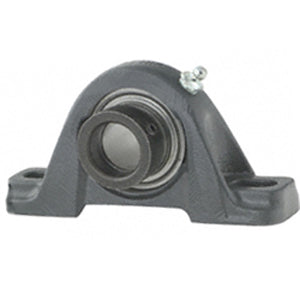

| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | NTN |
| Weight / kgm | 2.032 |
| Inch - Metric | Inch |
| Brand | NTN |
| Weight / LBS | 4.4 |
| Other Features | Single Row | Light Duty | Wide Inner Race | Has Flinger | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 514410 |
| Mounting Method | Eccentric Collar |
| Length Thru Bore | 2.217 Inch | 56.312 Millimeter |
| Actual Bolt Center to Center | 5.4 Inch | 137.2Millimeter |
| Nominal Bolt Center to Center | 5.4 Inch | 137.2 Millimeter |
| Base to Center Height | 1.938 Inch | 49.225 Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | UEL208-108D1W3 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Land Riding |
| Housing Material | Cast Iron |
| Mounting Bolts | 1/2 Inch |
| Housing Configuration | 1 Piece Solid |
