Specifications

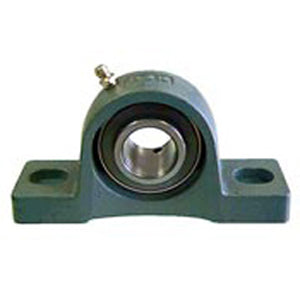

| title | UELP211TC |
| price | $ 223.57 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ASAHI BEARINGS |
| Weight / kgm | 4.4 |
| Inch - Metric | Metric |
| Brand | AMI BEARINGS |
| Weight / LBS | 9.68 |
| Other Features | Single Row | Spherical | Normal Duty |
| Relubricatable | Yes |
| Global Part Number GPN | 523747 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 2.228 Inch | 56.6 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 7.1 Inch | 181 Millimeter |
| Bolt Spacing Minimum | 6.614 Inch | 168Millimeter |
| Base to Center Height | 2.437 Inch | 61.9 Millimeter |
| Bolt Spacing Maximum | 7.638 Inch | 194Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | UE211 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Contact Seal |
| Housing Material | Teflon Coated Cast Iron |
| Mounting Bolts | 16 Millimeter |
| Housing Configuration | 1 Piece Solid |
