FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

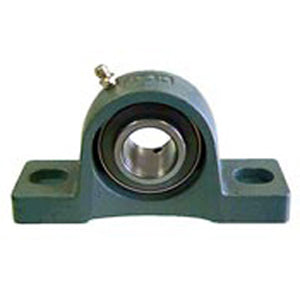

| title | UELP212TC |
| price | $ 255.10 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ASAHI BEARINGS |
| Weight / kgm | 5.91 |
| Inch - Metric | Metric |
| Brand | AMI BEARINGS |
| Weight / LBS | 13.02 |
| Other Features | Single Row | Spherical | Normal Duty |
| Relubricatable | Yes |
| Global Part Number GPN | 523741 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 2.622 Inch | 66.6 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 7.6 Inch | 193 Millimeter |
| Bolt Spacing Minimum | 7.126 Inch | 181Millimeter |
| Base to Center Height | 2.689 Inch | 68.3 Millimeter |
| Bolt Spacing Maximum | 8.11 Inch | 206Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | UE212 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Contact Seal |
| Housing Material | Teflon Coated Cast Iron |
| Mounting Bolts | 16 Millimeter |
| Housing Configuration | 1 Piece Solid |
