Specifications

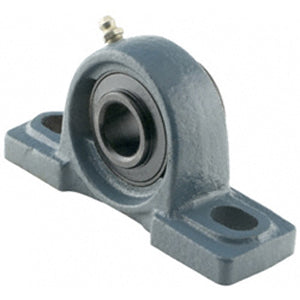

| title | UEP210TC |
| price | $ 168.72 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ASAHI BEARINGS |
| Weight / kgm | 3.378 |
| Inch - Metric | Metric |
| Brand | AMI BEARINGS |
| Weight / LBS | 6.64 |
| Other Features | Single Row | Spherical | Normal Duty |
| Relubricatable | Yes |
| Global Part Number GPN | 523620 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 2.071 Inch | 52.6 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 6.3 Inch | 160 Millimeter |
| Bolt Spacing Minimum | 5.866 Inch | 149Millimeter |
| Base to Center Height | 2.252 Inch | 57.2 Millimeter |
| Bolt Spacing Maximum | 6.614 Inch | 168Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | UE210 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Contact Seal |
| Housing Material | Teflon Coated Cast Iron |
| Mounting Bolts | 16 Millimeter |
| Housing Configuration | 1 Piece Solid |
