Specifications

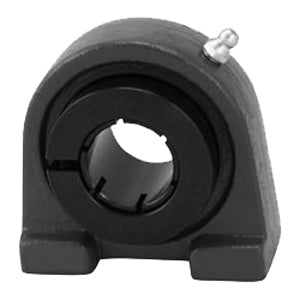

| title | UEPA210TC |
| price | $ 177.12 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ASAHI BEARINGS |
| Weight / kgm | 2.92 |
| Inch - Metric | Metric |
| Brand | AMI BEARINGS |
| Weight / LBS | 6.42 |
| Other Features | Single Row | Spherical | Normal Duty |
| Relubricatable | Yes |
| Global Part Number GPN | 523720 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 2.071 Inch | 52.6 Millimeter |
| Actual Bolt Center to Center | 3.7 Inch | 95Millimeter |
| Nominal Bolt Center to Center | 3.7 Inch | 95 Millimeter |
| Bolt Spacing Minimum | 0 Inch | 0Millimeter |
| Base to Center Height | 2.252 Inch | 57.2 Millimeter |
| Bolt Spacing Maximum | 0 Inch | 0Millimeter |
| Housing Style | 2 Bolt Tap Base Pillow Block |
| Insert Part Number | UE210 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Contact Seal |
| Housing Material | Teflon Coated Cast Iron |
| Mounting Bolts | 16 Millimeter |
| Housing Configuration | 1 Piece Solid |
