Specifications

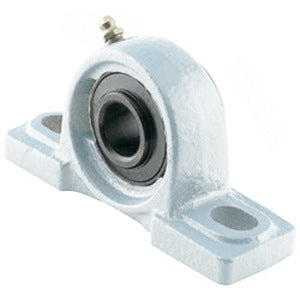

| title | UEPPL210-32W |
| price | $ 199.80 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ASAHI BEARINGS |
| Weight / kgm | 1.5 |
| Inch - Metric | Inch |
| Brand | AMI BEARINGS |
| Weight / LBS | 3.3 |
| Other Features | Single Row | Spherical | Normal Duty | White Housing |
| Relubricatable | Yes |
| Global Part Number GPN | 500585 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 2.071 Inch | 52.6 Millimeter |
| Actual Bolt Center to Center | 6.3 Inch | 159Millimeter |
| Nominal Bolt Center to Center | 6.3 Inch | 160 Millimeter |
| Bolt Spacing Minimum | 0 Inch | 0Millimeter |
| Base to Center Height | 2.25 Inch | 57.15 Millimeter |
| Bolt Spacing Maximum | 0 Inch | 0Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | UE210-32 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Contact Seal |
| Housing Material | Thermoplastic |
| Mounting Bolts | 5/8 Inch |
| Housing Configuration | 1 Piece Solid |
