Specifications

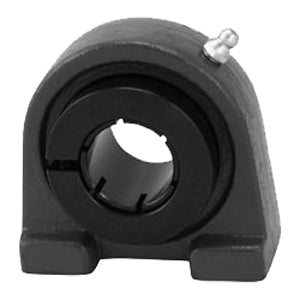

| title | UETB206-18TC |
| price | $ 106.01 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ASAHI BEARINGS |
| Weight / kgm | 1.126 |
| Inch - Metric | Inch |
| Brand | AMI BEARINGS |
| Weight / LBS | 2.87 |
| Other Features | Single Row | Spherical | Normal Duty |
| Relubricatable | Yes |
| Global Part Number GPN | 523565 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 1.567 Inch | 39.8 Millimeter |
| Actual Bolt Center to Center | 3 Inch | 76Millimeter |
| Nominal Bolt Center to Center | 3 Inch | 76 Millimeter |
| Bolt Spacing Minimum | 0 Inch | 0Millimeter |
| Base to Center Height | 1.688 Inch | 42.875 Millimeter |
| Bolt Spacing Maximum | 0 Inch | 0Millimeter |
| Housing Style | 2 Bolt Tap Base Pillow Block |
| Insert Part Number | UE206-18 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Contact Seal |
| Housing Material | Teflon Coated Cast Iron |
| Mounting Bolts | 7/16 Inch |
| Housing Configuration | 1 Piece Solid |
