Specifications

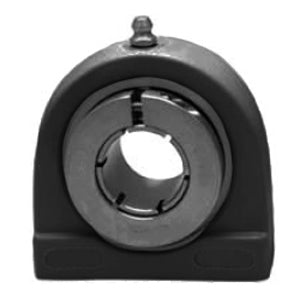

| title | UETBL208-24B |
| price | $ 186.14 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ASAHI BEARINGS |
| Weight / kgm | 1.1 |
| Inch - Metric | Inch |
| Brand | AMI BEARINGS |
| Weight / LBS | 2.43 |
| Other Features | Single Row | Spherical | Normal Duty | Black Housing |
| Relubricatable | Yes |
| Global Part Number GPN | 523584 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 1.969 Inch | 50 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 3.5 Inch | 90 Millimeter |
| Bolt Spacing Minimum | 3.5 Inch | 88.9Millimeter |
| Base to Center Height | 1.938 Inch | 49.225 Millimeter |
| Bolt Spacing Maximum | 3.5 Inch | 88.9Millimeter |
| Housing Style | 2 Bolt Tap Base Pillow Block |
| Insert Part Number | UE208-24 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Contact Seal |
| Housing Material | Thermoplastic |
| Housing Configuration | 1 Piece Solid |
