Specifications
| title | UGAK208-24RT |
| price | $ 87.03 / each |

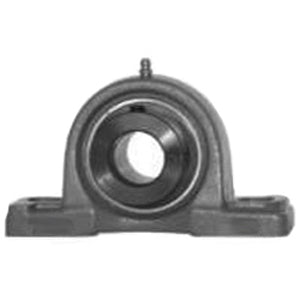

| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ASAHI BEARINGS |
| Weight / kgm | 2.452 |
| Inch - Metric | Inch |
| Brand | AMI BEARINGS |
| Weight / LBS | 4.85 |
| Other Features | Single Row | Spherical | Normal Duty | Has Slinger |
| Relubricatable | Yes |
| Global Part Number GPN | 500550 |
| Mounting Method | Eccentric Collar |
| Length Thru Bore | 2.219 Inch | 56.363 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 5.4 Inch | 136 Millimeter |
| Bolt Spacing Minimum | 5.25 Inch | 133.35Millimeter |
| Base to Center Height | 1.938 Inch | 49.225 Millimeter |
| Bolt Spacing Maximum | 5.75 Inch | 146.05Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | UG208-24 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Contact Seal |
| Housing Material | Cast Iron |
| Mounting Bolts | 1/2 Inch |
| Housing Configuration | 1 Piece Solid |
