Specifications

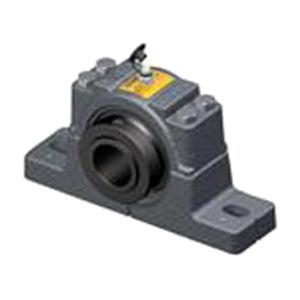

| title | USRB5511E-115-C |
| price | $ 489.56 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | MORSE INDUSTRIAL |
| Inch - Metric | Inch |
| Brand | MORSE INDUSTRIAL |
| Weight / LBS | 13.8 |
| Other Features | Double Row | With Set Screw |
| Relubricatable | Yes |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 2.875 Inch | 73.02 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 7.8 Inch | 199.2 Millimeter |
| Bolt Spacing Minimum | 7.375 Inch | 187.325Millimeter |
| Base to Center Height | 2.75 Inch | 69.85 Millimeter |
| Bolt Spacing Maximum | 8.25 Inch | 209.55Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | USI5000-115-C |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Expansion |
| Seals | Double Lip Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 5/8 Inch |
| Housing Configuration | 2 Piece Split |
