Specifications

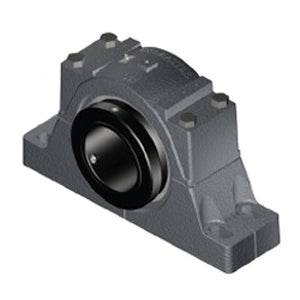

| title | USRB5522-315-C |
| price | $ 1,780.71 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | MORSE INDUSTRIAL |
| Inch - Metric | Inch |
| Brand | MORSE INDUSTRIAL |
| Weight / LBS | 87.7 |
| Other Features | Double Row | With Set Screw |
| Relubricatable | Yes |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 4.938 Inch | 125.425 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 13.5 Inch | 342.5 Millimeter |
| Bolt Spacing Minimum | 12.594 Inch | 319.888Millimeter |
| Base to Center Height | 4.938 Inch | 125.425 Millimeter |
| Bolt Spacing Maximum | 14.5 Inch | 368.3Millimeter |
| Housing Style | 4 Bolt Pillow Block |
| Insert Part Number | USI5000-315-C |
| Number of Mounting Holes | 4 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Double Lip Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 3/4 Inch |
| Housing Configuration | 2 Piece Split |
