Specifications

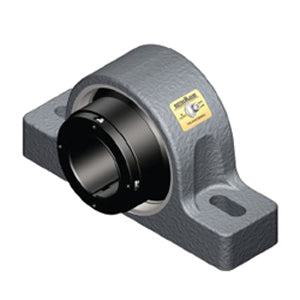

| title | USRBE5000AE-200 |
| price | $ 417.45 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | MORSE INDUSTRIAL |
| Inch - Metric | Inch |
| Brand | MORSE INDUSTRIAL |
| Weight / LBS | 11.9 |
| Other Features | Double Row | Has Flinger |
| Relubricatable | Yes |
| Mounting Method | Adapter Sleeve |
| Length Thru Bore | 3.5 Inch | 88.9 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 6.6 Inch | 167 Millimeter |
| Bolt Spacing Minimum | 6 Inch | 152.4Millimeter |
| Base to Center Height | 2.25 Inch | 57.15 Millimeter |
| Bolt Spacing Maximum | 7.125 Inch | 180.975Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | USI5000A-200 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Expansion |
| Seals | Felt Labyrinth |
| Housing Material | Ductile Iron |
| Mounting Bolts | 5/8 Inch |
| Housing Configuration | 1 Piece Solid |
