Specifications

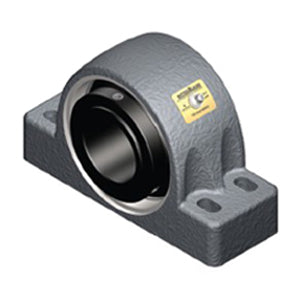

| title | USRBF5000-315 |
| price | $ 1,454.15 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | REGAL BELOIT |
| Weight / kgm | 26.11 |
| Inch - Metric | Inch |
| Brand | SEALMASTER |
| Weight / LBS | 57.5 |
| Other Features | Double Row | Has Flinger | With Set Screw |
| Relubricatable | Yes |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 4.938 Inch | 125.425 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 12.1 Inch | 308.5 Millimeter |
| Bolt Spacing Minimum | 11 Inch | 279.4Millimeter |
| Base to Center Height | 4.25 Inch | 107.95 Millimeter |
| Bolt Spacing Maximum | 13 Inch | 330.2Millimeter |
| Housing Style | 4 Bolt Pillow Block |
| Insert Part Number | USI5000-315 |
| Number of Mounting Holes | 4 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Felt Labyrinth |
| Housing Material | Cast Iron |
| Mounting Bolts | 3/4 Inch |
| Housing Configuration | 1 Piece Solid |
