Specifications

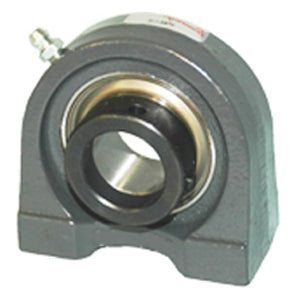

| title | VTBE-131 |
| price | $ 132.04 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | REGAL BELOIT |
| Weight / kgm | 2.588 |
| Inch - Metric | Inch |
| Brand | BROWNING |
| Weight / LBS | 5.7 |
| Other Features | Single Row | Spherical | Intermediate Duty |
| Relubricatable | Yes |
| Global Part Number GPN | 522994 |
| Mounting Method | Eccentric Collar |
| Length Thru Bore | 1.781 Inch | 45.237 Millimeter |
| Actual Bolt Center to Center | 4 Inch | 102Millimeter |
| Nominal Bolt Center to Center | 4 Inch | 101.6 Millimeter |
| Bolt Spacing Minimum | 0 Inch | 0Millimeter |
| Base to Center Height | 2.25 Inch | 57.15 Millimeter |
| Bolt Spacing Maximum | 0 Inch | 0Millimeter |
| Housing Style | 2 Bolt Tap Base Pillow Block |
| Insert Part Number | VE-131 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 5/8 Inch |
| Housing Configuration | 1 Piece Solid |
