FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

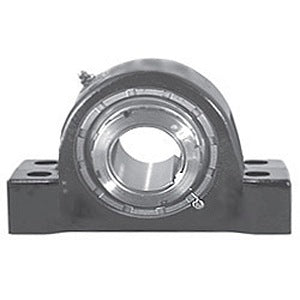

| title | ZA2115F |
| price | $ 411.35 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | REXNORD |
| Weight / kgm | 5.312 |
| Inch - Metric | Inch |
| Brand | REXNORD |
| Weight / LBS | 13.2 |
| Other Features | Double Row | Normal Duty | Single Collar | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 502372 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 3.125 Inch | 79.38 Millimeter |
| Actual Bolt Center to Center | 6.3 Inch | 159Millimeter |
| Nominal Bolt Center to Center | 6.3 Inch | 160 Millimeter |
| Bolt Spacing Minimum | 0 Inch | 0Millimeter |
| Base to Center Height | 2.25 Inch | 57.15 Millimeter |
| Bolt Spacing Maximum | 0 Inch | 0Millimeter |
| Housing Style | 4 Bolt Pillow Block |
| Insert Part Number | 2115U |
| Number of Mounting Holes | 4 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Clearance Seal |
| Housing Material | Cast Iron |
| Mounting Bolts | 1/2 Inch |
| Housing Configuration | 1 Piece Solid |
