Specifications

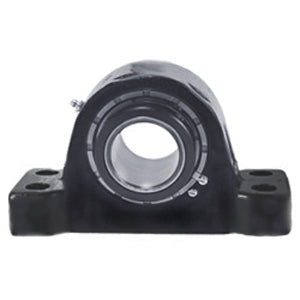

| title | ZEP2090MMF |
| price | $ 1,993.24 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | REXNORD |
| Inch - Metric | Metric |
| Brand | REXNORD |
| Weight / LBS | 61 |
| Other Features | Double Row | Single Collar | With Set Screw |
| Relubricatable | Yes |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 4.375 Inch | 111.13 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 10.3 Inch | 260.5 Millimeter |
| Bolt Spacing Minimum | 9.313 Inch | 236.54Millimeter |
| Base to Center Height | 3.75 Inch | 95.25 Millimeter |
| Bolt Spacing Maximum | 11.313 Inch | 287.34Millimeter |
| Housing Style | 4 Bolt Pillow Block |
| Insert Part Number | 2090MMU |
| Number of Mounting Holes | 4 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Clearance Seal |
| Housing Material | Cast Iron |
| Mounting Bolts | 19 Millimeter |
| Housing Configuration | 1 Piece Solid |
