FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

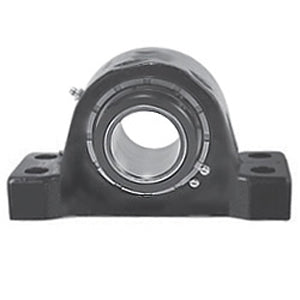

| title | ZEP5130MMF |
| price | $ 5,011.89 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | REXNORD |
| Inch - Metric | Metric |
| Brand | REXNORD |
| Weight / LBS | 150 |
| Other Features | Double Row | Double Collar | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 501934 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 7.875 Inch | 200.03 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 15.5 Inch | 393.7 Millimeter |
| Bolt Spacing Minimum | 14.875 Inch | 377.83Millimeter |
| Base to Center Height | 5.5 Inch | 139.7 Millimeter |
| Bolt Spacing Maximum | 16.125 Inch | 409.58Millimeter |
| Housing Style | 4 Bolt Pillow Block |
| Insert Part Number | 5130MMU |
| Number of Mounting Holes | 4 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Clearance Seal |
| Housing Material | Cast Iron |
| Mounting Bolts | 22 Millimeter |
| Housing Configuration | 1 Piece Solid |
