Specifications

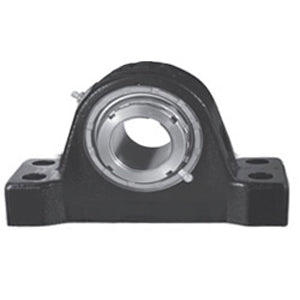

| title | ZPS9507F |
| price | $ 13,861.78 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | REXNORD |
| Inch - Metric | Inch |
| Brand | REXNORD |
| Weight / LBS | 269 |
| Other Features | Double Row | Extra Heavy Duty |
| Relubricatable | Yes |
| Global Part Number GPN | 501756 |
| Mounting Method | Tapered Adapter Sleeve |
| Length Thru Bore | 7.188 Inch | 182.575 Millimeter |
| Actual Bolt Center to Center | 20.5 Inch | 520.7Millimeter |
| Nominal Bolt Center to Center | 20.5 Inch | 520.7 Millimeter |
| Bolt Spacing Minimum | 0 Inch | 0Millimeter |
| Base to Center Height | 7.063 Inch | 179.4 Millimeter |
| Bolt Spacing Maximum | 0 Inch | 0Millimeter |
| Housing Style | 4 Bolt Pillow Block |
| Insert Part Number | 9507U |
| Number of Mounting Holes | 4 |
| Expansion / Non-expansion | Expansion |
| Seals | Clearance Seal |
| Housing Material | Cast Iron |
| Mounting Bolts | 1-1/8 Inch |
| Housing Configuration | 1 Piece Solid |
