Specifications

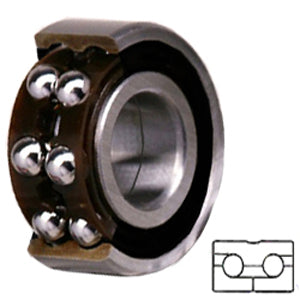

| title | BEAS 008032-2RS |
| price | $ 583.47 / each |
| Category | Miniature Precision Ball Bearings |
| UNSPSC | 31171531 |
| Harmonized Tariff Code | 8482.10.50.28 |
| Manufacturer Name | SKF |
| Inch - Metric | Metric |
| Brand | SKF |
| Weight / LBS | 0.221 |
| Bore | 0.315 Inch | 8 Millimeter |
| Other Features | Double Row | Angular Contact Thrust Bearing | Super Precision | Double Direction | For Screw Drive |
| Outside Diameter | 1.26 Inch | 32 Millimeter |
| Seal Type | 2 Seals |
| Enclosure | 2 Seals |
| Precision Class | ABEC 7 | ISO P4 |
| Cage Material | Polyamide |
| Inner Race Width | 0.787 Inch | 20 Millimeter |
| Outer Race Width | 0.787 Inch | 20 Millimeter |
| Flange Outside Diameter | 0 Inch | 0 Millimeter |
| Single Row/Double Row | Single Row |
| Preload | None |
| Material - Ball | Steel |
| Contact Angle | 60 Degree |
| Raceway Style | 2 Rib Inner Ring and 1 Rib Outer Ring |
| Enclosure Type | Contact Seal |
| Flush Ground | No |
| Flanges | No |
| Race Material | Steel |
