Specifications

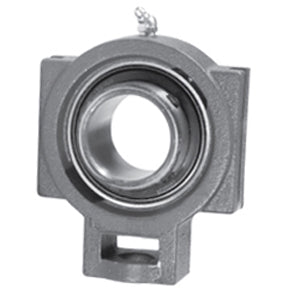

| title | T3U224H |
| price | $ 262.59 / each |
| Category | Take Up Unit Bearings |
| UNSPSC | 31171533 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | LINK BELT |
| Inch - Metric | Inch |
| Brand | LINK BELT |
| Weight / LBS | 4.383 |
| Bore | 1.5 Inch | 38.1 Millimeter |
| EAN | 662327148317 |
| Other Features | Single Row | Spherical | Standard Duty | Wide Inner Race | Standard Slot | Floating Labyrinth |
| Global Part Number GPN | 246121 |
| Mounting Method | Set Screw |
| Slot to Slot Distance | 3.5 Inch | 88.9 Millimeter |
| Slot Width | 0.406 Inch | 10.312 Millimeter |
| Housing Style | Unit Only |
| Compatible Take Up Frame | Not Specified |
| Insert Part Number | UG224HL |
| Housing Material | Cast Iron |
