FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

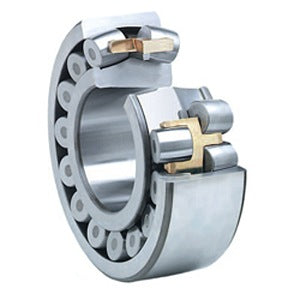

| title | 22317-E1A-K-M-C3 |
| price | $ 616.72 / each |
| Category | Spherical Roller Bearings |
| UNSPSC | 31171510 |
| Harmonized Tariff Code | 84823080 |
| Manufacturer Name | SCHAEFFLER GROUP USA INC |
| Inch - Metric | Metric |
| Brand | FAG BEARING |
| Weight / LBS | 15.234 |
| Bore | 3.346 Inch | 85 Millimeter |
| EAN | 4026677848215 |
| Outside Diameter | 7.087 Inch | 180 Millimeter |
| Relubricatable | Yes |
| Seal Type | Open |
| Enclosure | Open |
| Global Part Number GPN | 477121 |
| Mounting Method | Adapter Mount |
| Cage Material | Bronze |
| Width | 2.362 Inch | 60 Millimeter |
| Internal Clearance | C3-Loose |
| Number of Rows of Rollers | Double Row |
| Withdrawal Sleeve | AHX2317 (Specify bore) |
| Withdrawal Nut | KM19 |
| Adapter Part Number | SNW117 H2317 HA2317 HE2317 (Specify Bore) Inch | H2317 (Specify bore) Millimeter |
| Bore Profile | Tapered |
