Specifications

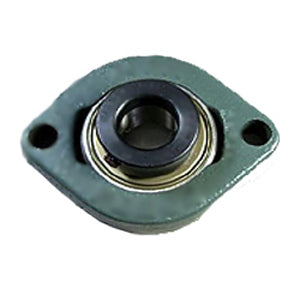

| title | AELFD204-012 |
| price | $ 43.97 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | NTN |
| Inch - Metric | Inch |
| Brand | NTN |
| Weight / LBS | 1.1 |
| Bore | 0.75 Inch | 19.05 Millimeter |
| EAN | 4547359460339 |
| Other Features | Single Row | Light Duty | Narrow Inner Race | Has Trash Guard | With Set Screw |
| Relubricatable | No |
| Global Part Number GPN | 554041 |
| Mounting Method | Eccentric Collar |
| Length Thru Bore | 1.22 Inch | 30.988 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Bolt Spacing | 2.781 Inch | 70.637 Millimeter |
| Nominal Bolt Circle Diameter Round | 2.8 Inch | 71.1 Millimeter |
| Housing Style | 2 Bolt Flange Block |
| Number of Mounting Holes | 2 |
| Mounting Bolts | 5/16 Inch |
| Insert Part Number | AEL204-012W3 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contour Riding |
| Pilot Configuration | No Pilot |
