Specifications

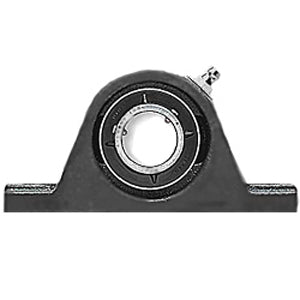

| title | ARP-1.15/16 |
| price | $ 94.69 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | NTN |
| Weight / kgm | 0.026 |
| Inch - Metric | Inch |
| Brand | NTN |
| Weight / LBS | 0.058 |
| Other Features | Single Row | Narrow Inner Race | Has Trash Guard |
| Relubricatable | Yes |
| Global Part Number GPN | 514891 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.693 Inch | 43 Millimeter |
| Actual Bolt Center to Center | 6.2 Inch | 157Millimeter |
| Nominal Bolt Center to Center | 6.3 Inch | 160 Millimeter |
| Bolt Spacing Minimum | 0 Inch | 0Millimeter |
| Base to Center Height | 2.25 Inch | 57.15 Millimeter |
| Bolt Spacing Maximum | 0 Inch | 0Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | A-AR210-115D1 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Land Riding |
| Housing Material | Cast Iron |
| Mounting Bolts | 5/8 Inch |
| Housing Configuration | 1 Piece Solid |
