Specifications

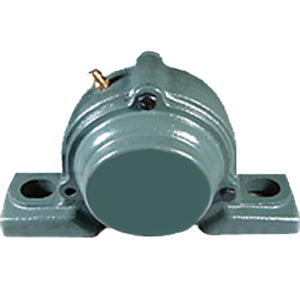

| title | CM-UCP309D1 |
| price | $ 267.91 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | NTN |
| Inch - Metric | Metric |
| Brand | NTN |
| Weight / LBS | 11.905 |
| Other Features | Single Row | Heavy Duty | Wide Inner Race | Closed End | Has Flinger |
| Relubricatable | Yes |
| Global Part Number GPN | 500438 |
| Mounting Method | Set Screw |
| Length Thru Bore | 2.244 Inch | 57 Millimeter |
| Actual Bolt Center to Center | 7.5 Inch | 190Millimeter |
| Nominal Bolt Center to Center | 7.5 Inch | 190 Millimeter |
| Bolt Spacing Minimum | 0 Inch | 0Millimeter |
| Base to Center Height | 2.638 Inch | 67 Millimeter |
| Bolt Spacing Maximum | 0 Inch | 0Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | UC309D1 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Land Riding |
| Housing Material | Cast Iron |
| Mounting Bolts | 16 Millimeter |
| Housing Configuration | 1 Piece Solid |
