Specifications

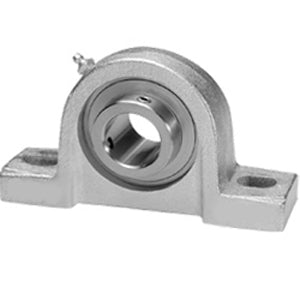

| title | CUCNPP 215 48 |
| price | $ 427.15 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | IPTCI |
| Inch - Metric | Inch |
| Brand | IPTCI |
| Weight / LBS | 17 |
| Other Features | Single Row | Corrosion Resistant | Hard Chrome Coated Insert | High Base | Has Slinger | Optional Locking Collar |
| Relubricatable | Yes |
| Global Part Number GPN | 519212 |
| Mounting Method | Set Screw |
| Length Thru Bore | 3.063 Inch | 77.8 Millimeter |
| Actual Bolt Center to Center | 8.5 Inch | 217Millimeter |
| Nominal Bolt Center to Center | 8.5 Inch | 215.5 Millimeter |
| Bolt Spacing Minimum | 0 Inch | 0Millimeter |
| Base to Center Height | 3.25 Inch | 82.55 Millimeter |
| Bolt Spacing Maximum | 0 Inch | 0Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | CUC215-48 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | B Seal |
| Housing Material | Nickel Coated Cast Iron |
| Mounting Bolts | 7/8 Inch |
| Housing Configuration | 1 Piece Solid |
