FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

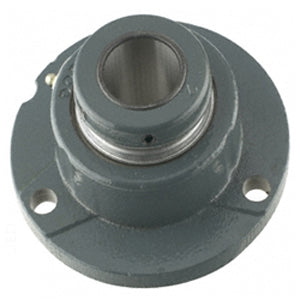

| title | F3R-S2-108R |
| price | $ 298.44 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 2.987 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 6.58 |
| Bore | 1.5 Inch | 38.1 Millimeter |
| EAN | 0782475306602 |
| Other Features | Double Row | Has Flinger | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 550810 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 2.531 Inch | 64.287 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 4.3 Inch | 110 Millimeter |
| Nominal Bolt Circle Diameter Round | 5 Inch | 127 Millimeter |
| Housing Style | 3 Bolt Round Flange Block |
| Number of Mounting Holes | 3 |
| Mounting Bolts | 1/2 Inch |
| Insert Part Number | INS-S2-108R |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Triple Lip Contact |
| Pilot Configuration | No Pilot |
