Specifications
| title | MAS521576 |
| price | $ 1,452.91 / each |

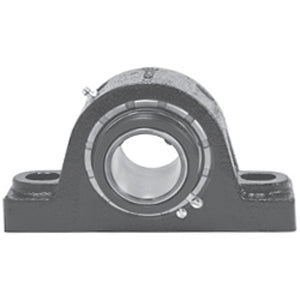

| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | REXNORD |
| Inch - Metric | Inch |
| Brand | REXNORD |
| Weight / LBS | 28.5 |
| Other Features | Double Row | Double Collar | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 502868 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 4.875 Inch | 123.83 Millimeter |
| Actual Bolt Center to Center | 8.1 Inch | 206Millimeter |
| Nominal Bolt Center to Center | 8.1 Inch | 206.4 Millimeter |
| Bolt Spacing Minimum | 0 Inch | 0Millimeter |
| Base to Center Height | 3.25 Inch | 82.55 Millimeter |
| Bolt Spacing Maximum | 0 Inch | 0Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | 5215U |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Expansion |
| Seals | Heavy Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 3/4 Inch |
| Housing Configuration | 1 Piece Solid |
