Specifications

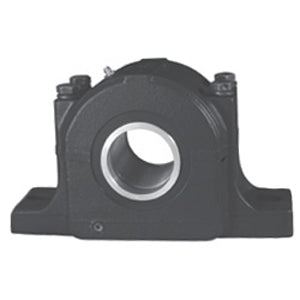

| title | PLB68M65R |
| price | $ 1,011.54 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | LINK BELT |
| Inch - Metric | Metric |
| Brand | LINK BELT |
| Weight / LBS | 26.896 |
| Other Features | Double Row |
| Relubricatable | Yes |
| Global Part Number GPN | 516697 |
| Mounting Method | Adapter Sleeve |
| Length Thru Bore | 0 Inch | 0 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 8.8 Inch | 223 Millimeter |
| Bolt Spacing Minimum | 8.626 Inch | 219.1Millimeter |
| Base to Center Height | 3.252 Inch | 82.6 Millimeter |
| Bolt Spacing Maximum | 9.626 Inch | 244.5Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | 22215LBC3 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Multi Labyrinth |
| Housing Material | Cast Iron |
| Mounting Bolts | 16 Millimeter |
| Housing Configuration | 2 Piece Split |
