Specifications
| title | SF-204 |
| price | $ 124.52 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | REGAL BELOIT |
| Weight / kgm | 0.68 |
| Inch - Metric | Metric |
| Brand | SEALMASTER |
| Weight / LBS | 1.5 |
| Bore | 0.787 Inch | 20 Millimeter |
| EAN | 0662461052259 |
| Other Features | Single Row | Standard Duty | Has Flinger |
| Relubricatable | Yes |
| Global Part Number GPN | 12140 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.219 Inch | 30.96 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 2.5 Inch | 63.5 Millimeter |
| Nominal Bolt Circle Diameter Round | 3.6 Inch | 90.5 Millimeter |

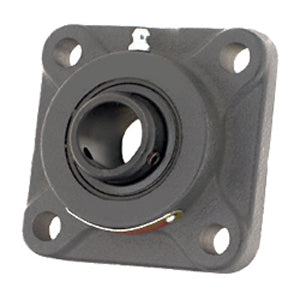

| Housing Style | 4 Bolt Square Flange Block |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 13/32 Inch |
| Insert Part Number | 5204 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Felt Labyrinth |
| Pilot Configuration | No Pilot |
