Specifications

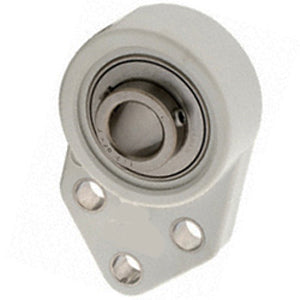

| title | SNATFB 205 16 |
| price | $ 94.57 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | IPTCI BEARINGS |
| Inch - Metric | Inch |
| Brand | IPTCI |
| Bore | 1 Inch | 25.4 Millimeter |
| Other Features | Single Row | Corrosion Resistant | Stainless Steel Insert | Has Slinger |
| Global Part Number GPN | 556369 |
| Mounting Method | Eccentric Collar |
| Length Thru Bore | 1.339 Inch | 34 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 1.125 Inch | 28.58 Millimeter |
| Nominal Bolt Circle Diameter Round | 0 Inch | 0 Millimeter |
| Housing Style | 3 Bolt Flange Bracket |
| Number of Mounting Holes | 3 |
| Mounting Bolts | 5/16 Inch |
| Insert Part Number | SNA205-16 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Thermoplastic |
| Expansion / Non-expansion | Non-expansion |
| Seals | B Seal |
| Pilot Configuration | No Pilot |
