Specifications

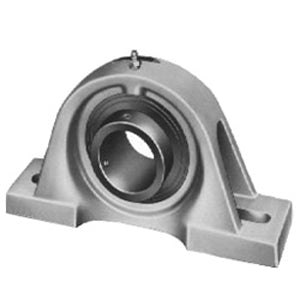

| title | SP-35 |
| price | $ 389.20 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | REGAL BELOIT |
| Weight / kgm | 6.4 |
| Inch - Metric | Inch |
| Brand | SEALMASTER |
| Weight / LBS | 14.1 |
| Other Features | Single Row | Standard Duty | Has Flinger |
| Relubricatable | Yes |
| Global Part Number GPN | 6977 |
| Mounting Method | Set Screw |
| Length Thru Bore | 2.188 Inch | 55.575 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 8.5 Inch | 215.5 Millimeter |
| Bolt Spacing Minimum | 7.625 Inch | 193.675Millimeter |
| Base to Center Height | 3.125 Inch | 79.38 Millimeter |
| Bolt Spacing Maximum | 9.375 Inch | 238.125Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | 2-23 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Felt Labyrinth |
| Housing Material | Cast Iron |
| Mounting Bolts | 5/8 Inch |
| Housing Configuration | 1 Piece Solid |
